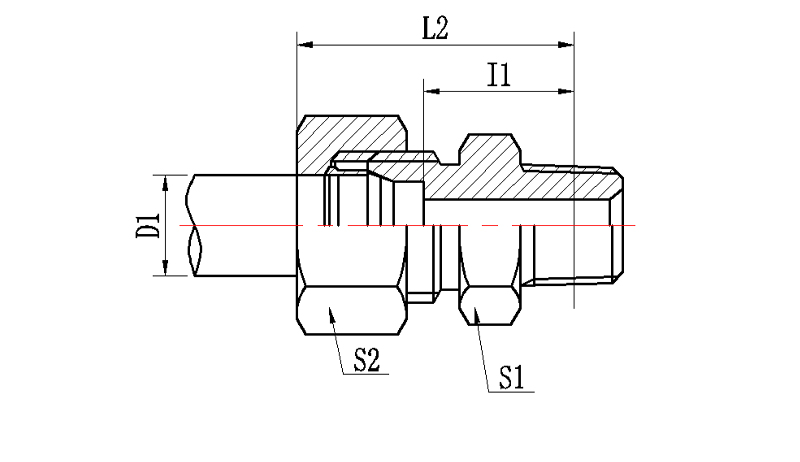

1CN,1DN,1CN-RN,1DN-RN
35#碳钢 45#碳钢
电镀蓝白锌/电镀锌镍合金/表面发黑
| 代号 | 螺纹 | 管子外径 | 尺寸 | 压力等级 |
| 1CN-12-02 |
E:M12X1.5 F:Z1/8"X27 |
D1=6 |
I1=13.4 L1=28.4 S1=12 S2=14 |
25轻系列L |
| 1CN-12-04 |
E:M12X1.5 F:Z1/4"X18 |
D1=6 |
I1=17.2 L1=32.2 S1=17 S2=14 |
|
| 1CN-14-04 |
E:M14X1.5 F:Z1/4"X18 |
D1=8 |
I1=17.2 L1=32.2 S1=14 S2=17 |
|
| 1CN-16-04 |
E:M16X1.5 F:Z1/4"X18 |
D1=10 |
I1=18.2 L1=33.2 S1=17 S2=19 |
|
| 1CN-16-06 |
E:M16X1.5 F:Z3/8"X18 |
D1=10 |
I1=19.9 L1=53.0 S1=19 S2=19 |
|
| 1CN-18-04 |
E:M18X1.5 F:Z1/4"X18 |
D1=12 |
I1=19.2 L1=34.2 S1=19 S2=22 |
|
| 1CN-18-06 |
E:M18X1.5 F:Z3/8"X18 |
D1=12 |
I1=19.9 L1=34.9 S1=19 S2=22 |
|
| 1CN-18-08 |
E:M18X1.5 F:Z1/2"X14 |
D1=12 |
I1=21.4 L1=36.4 S1=22 S2=22 |
|
| 1CN-22-08 |
E:M22X1.5 F:Z1/2"X14 |
D1=15 |
I1=22.4 L1=37.4 S1=24 S2=27 |
|
| 1CN-22-20 |
E:M22X1.5 F:Z1.1/4"X11.5 |
D1=15 |
I1=29.8 L1=37.4 S1=46 S2=27 |
|
| 1CN-26-08 |
E:M26X1.5 F:Z1/2"X14 |
D1=18 |
I1=22.9 L1=39.4 S1=27 S2=32 |
16轻系列L |
| 1CN-26-12 |
E:M26X1.5 F:Z3/4"X14 |
D1=18 |
I1=22.4 L1=38.9 S1=30 S2=32 |
|
| 1CN-30-08 |
E:M30X2 F:Z1/2"X14 |
D1=22 |
I1=24.4 L1=40.5 S1=32 S2=36 |
|
| 1CN-30-12 |
E:M30X2 F:Z3/4"X14 |
D1=22 |
I1=24.4 L1=40.9 S1=32 S2=36 |
|
| 1CN-36-16 |
E:M36X2 F:Z1"X11.5 |
D1=28 |
I1=29.8 L1=46.3 S1=41 S2=41 |
|
| 1CN-36-20 |
E:M36X2 F:Z1.1/4"X11.5 |
D1=28 |
I1=31.3 L1=46.3 S1=46 S2=41 |
|
| 1CN-45-20 |
E:M45X2 F:Z1.1/4"X11.5 |
D1=35 |
I1=30.3 L1=51.8 S1=46 S2=50 |
|
| 1CN-52-20 |
E:M52X2 F:Z1.1/4"X11.5 |
D1=42 |
I1=31.8 L1=55.8 S1=55 S2=60 |
|
| 1CN-52-24 |
E:M52X2 F:Z1.1/2"X11.5 |
D1=42 |
I1=32.8 L1=55.8 S1=55 S2=60 |
|
| 1DN-14-04 |
E:M14X1.5 F:Z1/4"X18 |
D1=6 |
I1=22.2 L1=37.2 S1=17 S2=17 |
40重系列S |
| 1DN-16-04 |
E:M16X1.5 F:Z1/4"X18 |
D1=8 |
I1=22.2 L1=37.2 S1=17 S2=19 |
|
| 1DN-18-04 |
E:M18X1.5 F:Z1/4"X18 |
D1=10 |
I1=21.7 L1=38.2 S1=19 S2=22 |
|
| 1DN-18-06 |
E:M18X1.5 F:Z3/8"X18 |
D1=10 |
I1=22.4 L1=38.9 S1=19 S2=22 |
|
| 1DN-20-04 |
E:M20X1.5 F:Z1/4"X18 |
D1=12 |
I1=23.7 L1=40.2 S1=22 S2=24 |
|
| 1DN-20-06 |
E:M20X1.5 F:Z3/8"X18 |
D1=12 |
I1=24.4 L1=40.9 S1=22 S2=24 |
|
| 1DN-20-08 |
E:M20X1.5 F:Z1/2"X14 |
D1=12 |
I1=25.9 L1=42.4 S1=22 S2=24 |
|
| 1DN-22-08 |
E:M22X1.5 F:Z1/2"X14 |
D1=14 |
I1=27.4 L1=45.4 S1=24 S2=27 |
|
| 1DN-24-08 |
E:M24X1.5 F:Z1/2"X14 |
D1=16 |
I1=26.9 L1=45.4 S1=27 S2=30 |
|
| 1DN-30-12 |
E:M30X2 F:Z3/4"X14 |
D1=20 |
I1=28.4 L1=49.9 S1=32 S2=36 |
25重系列S |
| 1DN-36-12 |
E:M36X2 F:Z3/4"X14 |
D1=25 |
I1=30.9 L1=34.0 S1=41 S2=46 |
|
| 1DN-36-16 |
E:M36X2 F:Z1"X11.5 |
D1=25 |
I1=35.3 L1=59.3 S1=41 S2=46 |
|
| 1DN-42-16 |
E:M42X2 F:Z1"X11.5 |
D1=25 |
I1=35.8 L1=59.3 S1=46 S2=46 |
|
| 1DN-42-20 |
E:M42X2 F:Z1.1/4"X11.5 |
D1=30 |
I1=36.3 L1=62.8 S1=46 S2=50 |
|
| 1DN-52-24 |
E:M52X2 F:Z1.1/2"X11.5 |
D1=38 |
I1=39.8 L1=70.8 S1=55 S2=60 |
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1DN-30-12RN。 |
||||
