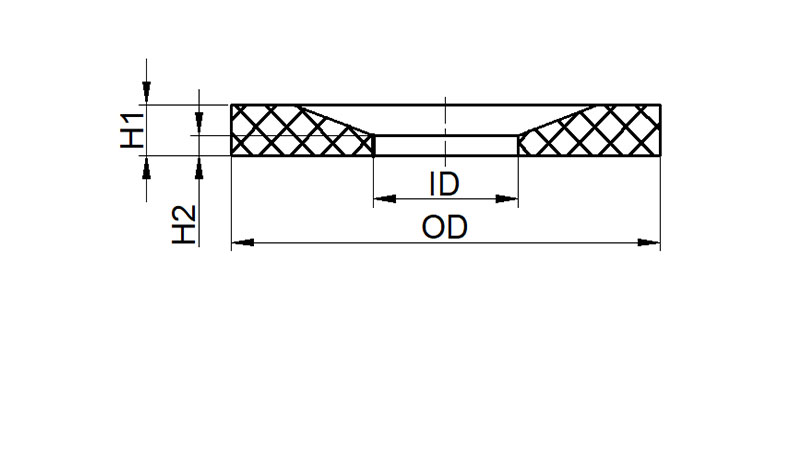

精准尺寸，专业工程设计
4BN-WD/4MN-WD
氟胶
(VHR 80-85)
| 代号 | 螺纹 | ID | OD | H2 | H1 |
| WD-B02 | G1/8X28 | 8.40 | 11.90 | 0.50 | 1.00 |
| WD-B04 | G1/4X19 | 11.60 | 16.50 | 0.80 | 1.50 |
| WD-B06 | G3/8X19 | 14.70 | 18.90 | 0.80 | 1.50 |
| WD-B08 | G1/2X14 | 18.50 | 23.90 | 0.80 | 1.50 |
| WD-B12 | G3/4X14 | 23.90 | 29.20 | 0.80 | 1.50 |
| WD-B20 | G1.1/4X11 | 38.80 | 45.80 | 1.00 | 2.00 |
| WD-B24 | G1.1/2X11 | 44.70 | 50.70 | 1.00 | 2.00 |
| WD-B32 | G2X11 | 56.50 | 66.50 | 2.00 | 4.00 |
| WD-B40 | G2.1/2X11 | 71.50 | 81.50 | 2.00 | 4.00 |
| 代号 | 螺纹 | ID | OD | H2 | H1 |
| ED-8 | M8X1 | 6.50 | 9.90 | 0.50 | 1.00 |
| ED-10 | M10X1 | 8.40 | 11.90 | 0.50 | 1.00 |
| ED-12 | M12X1.5 | 9.80 | 14.40 | 0.80 | 1.50 |
| ED-14 | M14X1.5 | 11.60 | 16.50 | 0.80 | 1.50 |
| ED-16 | M16X1.5 | 13.80 | 18.90 | 0.80 | 1.50 |
| ED-18 | M18X1.5 | 15.70 | 20.90 | 0.80 | 1.50 |
| ED-20 | M20X1.5 | 17.80 | 22.90 | 0.80 | 1.50 |
| ED-22 | M22X1.5 | 19.60 | 24.30 | 0.80 | 1.50 |
| ED-24 | M24X1.5 | 21.60 | 26.30 | 0.80 | 1.50 |
| ED-26 | M26X1.5 | 23.90 | 29.20 | 0.80 | 1.50 |
| ED-27 | M27X2 | 23.90 | 29.20 | 0.80 | 1.50 |
| ED-30 | M30X2 | 26.70 | 32.70 | 1.00 | 2.00 |
| ED-33 | M33X2 | 29.70 | 35.70 | 1.00 | 2.00 |
| ED-36 | M36X2 | 32.70 | 38.70 | 1.00 | 2.00 |
| ED-39 | M39X2 | 35.70 | 41.70 | 1.00 | 2.00 |
| ED-42 | M42X2 | 38.80 | 45.80 | 1.00 | 2.00 |
| ED-45 | M45X2 | 41.80 | 48.80 | 1.00 | 2.00 |
| ED-48 | M48X2 | 44.70 | 50.70 | 1.00 | 2.00 |
| ED-52 | M52X2 | 48.50 | 56.50 | 1.25 | 2.50 |
| ED-60 | M60X2 | 56.10 | 62.70 | 1.25 | 2.50 |
